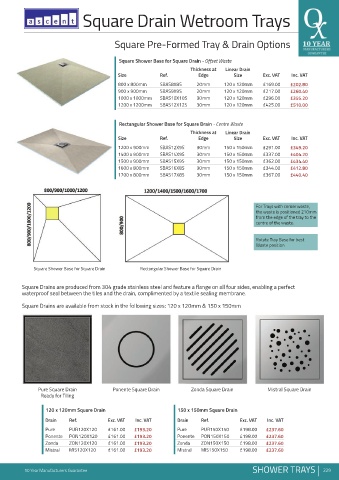

Page 231 - QX Bathroom Products - Brochure Oct 2022

Square Drain Wetroom Trays

Square Pre-Formed Tray & Drain Options

Square Shower Base for Square Drain - Offset Waste
Thickness at Linear Drain
Size Ref. Edge Size Exc. VAT Inc. VAT
800 x 800mm SBAS8X8S 20mm 120 x 120mm £169.00 £202.80
900 x 900mm SBAS9X9S 20mm 120 x 120mm £217.00 £260.40
1000 x 1000mm SBAS10X10S 30mm 120 x 120mm £296.00 £355.20
1200 x 1200mm SBAS12X12S 30mm 120 x 120mm £425.00 £510.00

Rectangular Shower Base for Square Drain - Centre Waste
Thickness at Linear Drain
Size Ref. Edge Size Exc. VAT Inc. VAT
1200 x 900mm SBAS12X9S 30mm 150 x 150mm £291.00 £349.20
1400 x 900mm SBAS14X9S 30mm 150 x 150mm £337.00 £404.20
1500 x 900mm SBAS15X9S 30mm 150 x 150mm £362.00 £434.40
1600 x 800mm SBAS16X8S 30mm 150 x 150mm £344.00 £412.80
1700 x 800mm SBAS17X8S 30mm 150 x 150mm £367.00 £440.40

For Trays with corner waste,
the waste is positioned 210mm
from the edge of the tray to the
centre of the waste.

Rotate Tray Base for best
Waste position

Square Shower Base for Square Drain Rectangular Shower Base for Square Drain

Square Drains are produced from 304 grade stainless steel and feature a flange on all four sides, enabling a perfect
waterproof seal between the tiles and the drain, complimented by a textile sealing membrane.

Square Drains are available from stock in the following sizes: 120 x 120mm & 150 x 150mm

Pure Square Drain Ponente Square Drain Zonda Square Drain Mistral Square Drain
Ready for Tiling

120 x 120mm Square Drain 150 x 150mm Square Drain
Drain Ref. Exc. VAT Inc. VAT Drain Ref. Exc. VAT Inc. VAT
Pure PUR120X120 £161.00 £193.20 Pure PUR150X150 £198.00 £237.60
Ponente PON120X120 £161.00 £193.20 Ponente PON150X150 £198.00 £237.60
Zonda ZON120X120 £161.00 £193.20 Zonda ZON150X150 £198.00 £237.60
Mistral MIS120X120 £161.00 £193.20 Mistral MIS150X150 £198.00 £237.60

10 Year Manufacturers Guarantee SHOWER TRAYS 229
