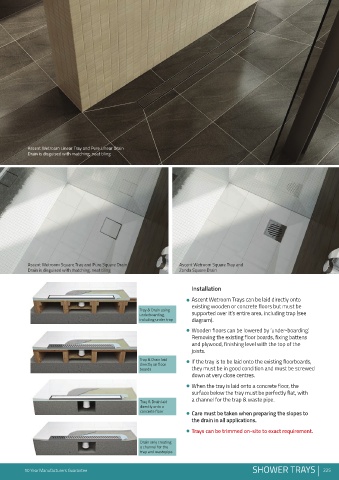

Ascent Wetroom Linear Tray and Pure Linear Drain
Drain is disguised with matching, neat tiling
Ascent Wetroom Square Tray and Pure Square Drain Ascent Wetroom Square Tray and
Drain is disguised with matching, neat tiling Zonda Square Drain
Installation
Ascent Wetroom Trays can be laid directly onto
existing wooden or concrete floors but must be
Tray & Drain using
underboarding, supported over it’s entire area, including trap (see
including under trap diagram).
Wooden floors can be lowered by ‘under-boarding’.
Removing the existing floor boards, fixing battens
and plywood, finishing level with the top of the
joists.
Tray & Drain laid If the tray is to be laid onto the existing floorboards,
directly on floor
boards they must be in good condition and must be screwed
down at very close centres.
When the tray is laid onto a concrete floor, the
surface below the tray must be perfectly flat, with
a channel for the trap & waste pipe.
Tray & Drain laid
directly onto a
concrete floor Care must be taken when preparing the slopes to
the drain in all applications.
Trays can be trimmed on-site to exact requirement.
Drain only creating
a channel for the
trap and wastepipe.
10 Year Manufacturers Guarantee SHOWER TRAYS 225
