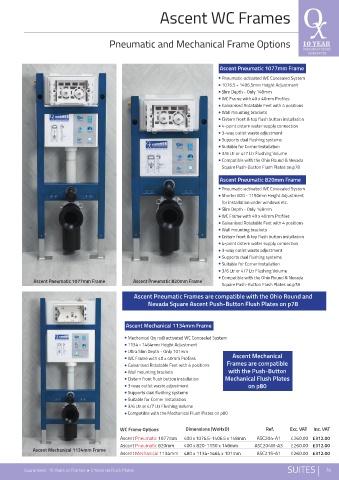

Page 81 - QX Bathroom Products - Brochure Feb 2024

Ascent WC Frames

Pneumatic and Mechanical Frame Options

Ascent Pneumatic 1077mm Frame
Pneumatic-activated WC Concealed System
1076.5 - 1406.5mm Height Adjustment
Slim Depth - Only 148mm
WC Frame with 40 x 40mm Profiles
Galvanised Rotatable Feet with 4 positions
Wall mounting brackets
Cistern front & top flush button installation
4-point cistern water supply connection
3-way outlet waste adjustment
Supports dual flushing systems
Suitable for Corner Installation
3/6 Ltr or 4/7 Ltr Flushing Volume
Compatible with the Ohio Round & Nevada
Square Push-Button Flush Plates on p78
Ascent Pneumatic 820mm Frame

Pneumatic-activated WC Concealed System
Shorter 820 - 1150mm Height Adjustment
for installation under windows etc.
Slim Depth - Only 148mm
WC Frame with 40 x 40mm Profiles
Galvanised Rotatable Feet with 4 positions
Wall mounting brackets
Cistern front & top flush button installation
4-point cistern water supply connection
3-way outlet waste adjustment
Supports dual flushing systems
Suitable for Corner Installation
3/6 Ltr or 4/7 Ltr Flushing Volume
Compatible with the Ohio Round & Nevada
Ascent Pneumatic 1077mm Frame Ascent Pneumatic 820mm Frame
Square Push-Button Flush Plates on p78
Ascent Pneumatic Frames are compatible with the Ohio Round and
Nevada Square Ascent Push-Button Flush Plates on p78

Ascent Mechanical 1134mm Frame

Mechanical (by rod) activated WC Concealed System
1134 - 1464mm Height Adjustment
Ultra Slim Depth - Only 101mm
WC Frame with 40 x 40mm Profiles Ascent Mechanical
Galvanised Rotatable Feet with 4 positions Frames are compatible
Wall mounting brackets with the Push-Button
Cistern front flush button installation Mechanical Flush Plates
3-way outlet waste adjustment on p80
Supports dual flushing systems
Suitable for Corner Installation
3/6 Ltr or 4/7 Ltr Flushing Volume
Compatible with the Mechanical Flush Plates on p80

WC Frame Options Dimensions (WxHxD) Ref. Exc. VAT Inc. VAT
Ascent Pneumatic 1077mm 400 x 1076.5-1406.5 x 148mm ASC204-A1 £260.00 £312.00
Ascent Pneumatic 820mm 400 x 820-1150 x 148mm ASC204W-A3 £260.00 £312.00
Ascent Mechanical 1134mm Frame
Ascent Mechanical 1134mm 480 x 1134-1464 x 101mm ASC215-A1 £260.00 £312.00

SUITES
Guarantees: 10 Years on Frames 2 Years on Flush Plates 79
