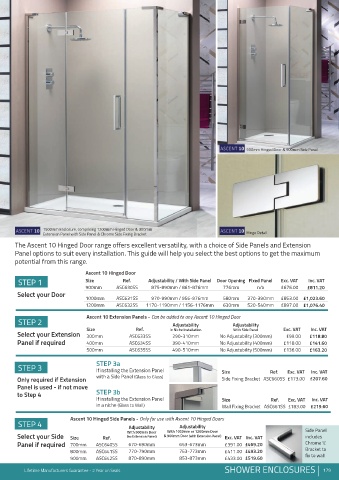

Page 181 - QX Bathroom Products - Brochure Feb 2024

900mm Hinged Door & 900mm Side Panel

1500mm Enclosure, comprising 1200mm Hinged Door & 300mm
Extension Panel with Side Panel & Chrome Side Fixing Bracket Hinge Detail
The Ascent 10 Hinged Door range offers excellent versatility, with a choice of Side Panels and Extension
Panel options to suit every installation. This guide will help you select the best options to get the maximum
potential from this range.

Ascent 10 Hinged Door
STEP 1 Size Ref. Adjustability / With Side Panel Door Opening Fixed Panel Exc. VAT Inc. VAT
900mm ASC630SS 875-890mm / 861-876mm 776mm n/a £676.00 £811.20
Select your Door
1000mm ASC631SS 970-990mm / 956-976mm 580mm 370-390mm £853.00 £1,023.60
1200mm ASC632SS 1170-1190mm / 1156-1176mm 630mm 520-540mm £897.00 £1,076.40

Ascent 10 Extension Panels - Can be added to any Ascent 10 Hinged Door
STEP 2 Adjustability Adjustability
Size Ref. in Niche Installation With Side Panel Exc. VAT Inc. VAT
Select your Extension 300mm ASC633SS 290-310mm No Adjustability (300mm) £99.00 £118.80
Panel if required 400mm ASC634SS 390-410mm No Adjustability (400mm) £118.00 £141.60
500mm ASC635SS 490-510mm No Adjustability (500mm) £136.00 £163.20

STEP 3 STEP 3a Size Ref. Exc. VAT Inc. VAT
If installing the Extension Panel
Only required if Extension with a Side Panel (Glass to Glass) Side Fixing Bracket ASC660SS £173.00 £207.60
Panel is used - if not move
to Step 4 STEP 3b
If installing the Extension Panel Size Ref. Exc. VAT Inc. VAT
in a niche (Glass to Wall) Wall Fixing Bracket ASC661SS £183.00 £219.60

Ascent 10 Hinged Side Panels - Only for use with Ascent 10 Hinged Doors
STEP 4 Adjustability Adjustability
With 1000mm or 1200mm Door
Select your Side Size Ref. With 900mm Door & 900mm Door (with Extension Panel) Exc. VAT Inc. VAT Side Panel
includes
(no Extension Panel)
Panel if required 700mm ASC640SS 670-690mm 653-673mm £391.00 £469.20 Chrome ‘L’
800mm ASC641SS 770-790mm 753-773mm £411.00 £493.20 Bracket to
900mm ASC642SS 870-890mm 853-873mm £433.00 £519.60 fix to wall
